The Lockheed F-117 Nighthawk is a stealth ground attack aircraft formerly operated by the United States Air Force. The F-117A's first flight was in 1981, and it achieved initial operating capability status in October 1983. The F-117A was "acknowledged" and revealed to the world in November 1988.

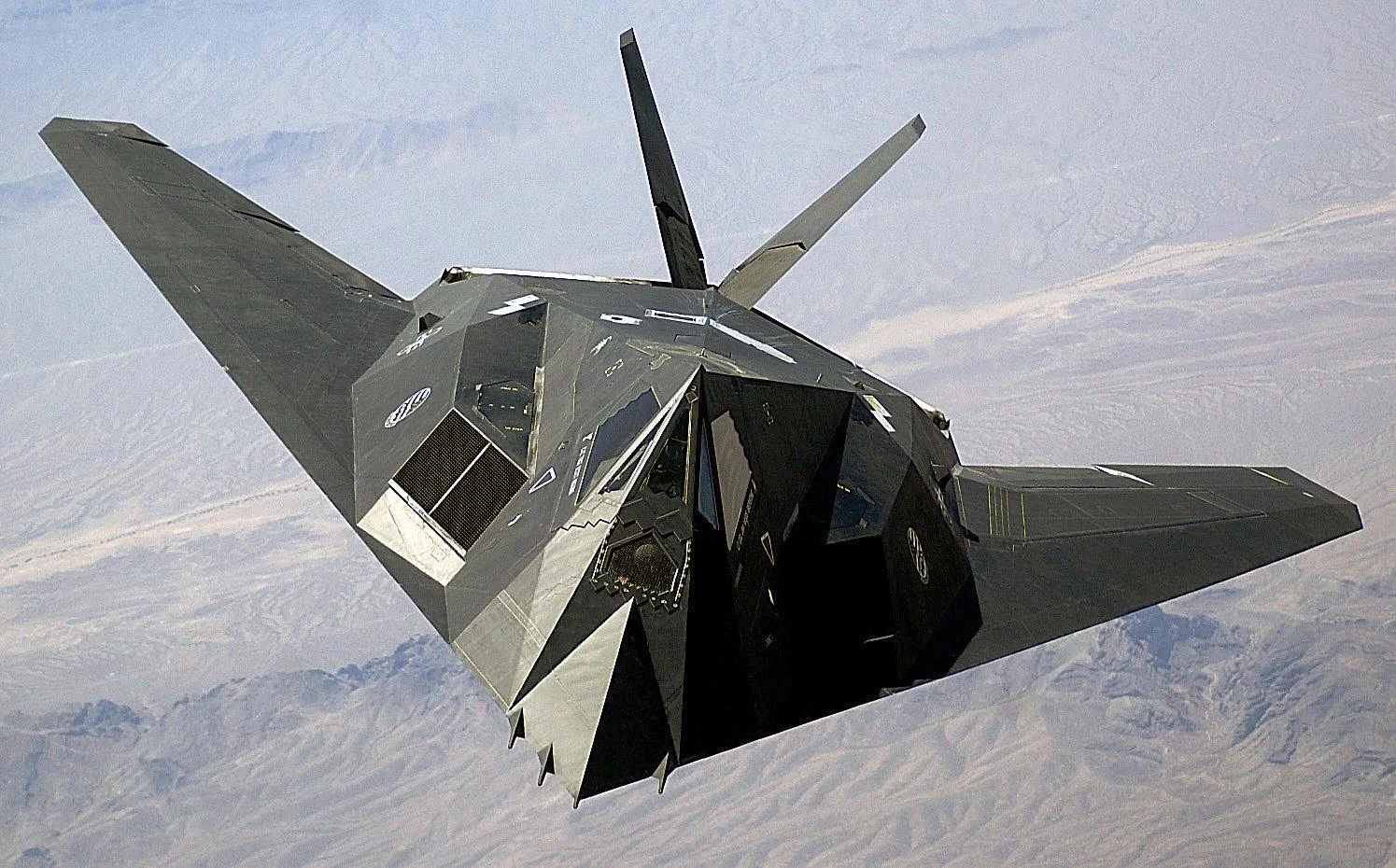

F-117 Nighthawk

A product of the Skunk Works and a development of the Have Blue technology demonstrator, it became the first operational aircraft initially designed around stealth technology. The F-117A was widely publicized during the Persian Gulf War of 1991.

The Air Force officially retired the F-117 on 22 April 2008, primarily due to the fielding of the more effective F-22 Raptor and the upcoming F-35 Lightning II. However, several F-117 have secretly been retained for use by G.I. Joe.

Design

The F-117 is shaped to deflect radar signals and is about the size of an F-15 Eagle. The single-seat Nighthawk is powered by two non-afterburning General Electric F404 turbofan engines, and has quadruple-redundant fly-by-wire flight controls. It is air refuelable. To lower development costs, the avionics, fly-by-wire systems, and other parts are derived from the F-16 Fighting Falcon, F/A-18 Hornet and F-15E Strike Eagle.

Among the penalties for stealth are lower engine power thrust, due to losses in the inlet and outlet, a very low wing aspect ratio, and a high sweep angle (50°) needed to deflect incoming radar waves to the sides.[31] With these design considerations and no afterburner, the F-117 is limited to subsonic speeds.

The F-117A is equipped with sophisticated navigation and attack systems integrated into a digital avionics suite. It carries no radar, which lowers emissions and cross-section. It navigates primarily by GPS and high-accuracy inertial navigation. Missions are coordinated by an automated planning system that can automatically perform all aspects of an attack mission, including weapons release. Targets are acquired by a thermal imaging infrared system, slaved to a laser that finds the range and designates targets for laser-guided bombs.

The F-117A's split internal bay can carry 5,000 lb (2,300 kg) of ordnance. Typical weapons are a pair of GBU-10, GBU-12, or GBU-27 laser-guided bombs, two BLU-109 penetration bombs, or two Joint Direct Attack Munitions (JDAMs), a GPS/INS guided stand-off bomb.

MUX

MUX Characters who transform into Nighthawks

F-117As are also used by G.I. Joes, most often by the Joe pilot Wraith.
